The model sees the assembled measurement chain, not the sensor data sheet

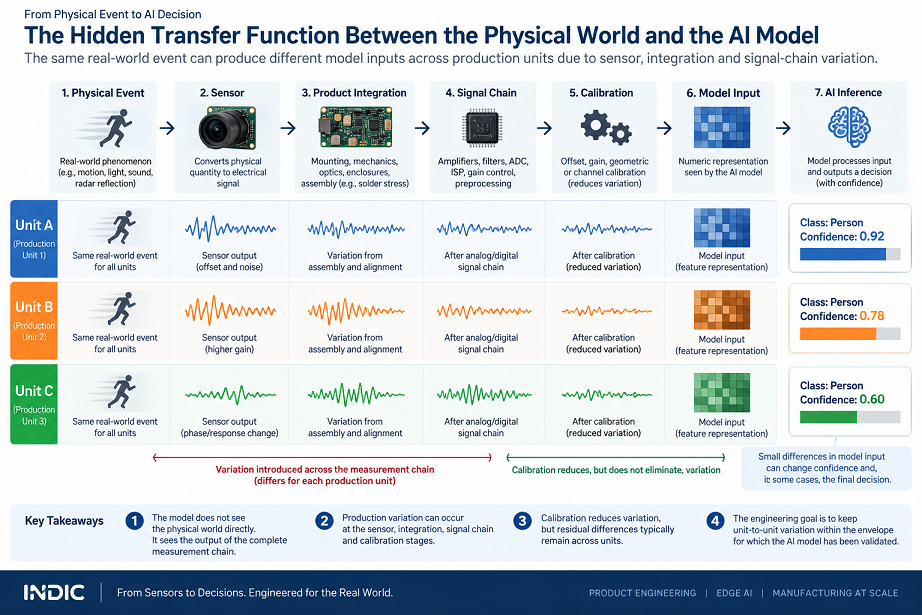

A useful way to reason about the path is as a conceptual measurement-chain sketch rather than as a formal signal-processing model:

Conceptual sketch: physical event → unit-specific sensor and integration behavior → disturbances introduced at multiple stages → calibration / preprocessing / feature transformation → model input.

Why this is deliberately not an equation: noise, bias, distortion and quantization can enter at different points in the chain, and preprocessing may be nonlinear, learned or configuration-dependent. The sketch makes only one claim: nominally identical production units can transform the same external event into different numerical representations before inference.

The important point is that the transfer behavior of the assembled sensing path is not perfectly identical across manufactured units. Bosch Sensortec notes, for example, that soldering and PCB bending can alter accelerometer offset and recommends calibration after the sensor is assembled into the device housing for relevant applications in its BMA400 accelerometer design guide. STMicroelectronics similarly specifies production calibration for its VL53L4CD time-of-flight sensor, including compensation for device variation and cover-glass effects in the VL53L4CD calibration guidance.

Those examples are not evidence that every sensor tolerance will disturb an AI model. They demonstrate the more fundamental production fact: the transfer behavior of an installed sensing system can differ from the behavior of a nominal loose component.

When does sensor variation become an Edge AI production problem?

Variation deserves production control when three conditions intersect:

1. The physical product can change the measurement. Device tolerance, reflow, PCB strain, mounting, optics, enclosure geometry, calibration, filtering, timing or preprocessing can move the signal.
2. The changed measurement reaches a model-relevant representation. The variation survives calibration and preprocessing strongly enough to alter a feature the model uses.
3. The resulting movement can violate an application requirement. Classification margin, regression error, detection stability, state estimation or another task-level metric leaves the validated envelope.

This is where the common question “is the sensor within spec?” stops being sufficient. Supplier specifications remain essential, but they answer the supplier's conformance question. They do not contain the sensitivity of an OEM's model or the effect of the OEM's mechanical and signal-processing architecture.

The OEM must convert model sensitivity into a manufacturing requirement

An AI team can establish that inference degrades when a feature moves outside a certain validated range. Manufacturing cannot build a process around that statement alone. It needs a controlled stimulus, an observable, an acceptance rule and a response when the requirement is not met.

A useful engineering handoff therefore contains four artifacts:

• Controlled stimulus: the target, orientation, motion, signal or condition applied to the assembled product.
• Production observable: the raw sensor value, calibration residual, intermediate feature or other measurement that can be reproduced economically at the line.
• Acceptance envelope: the product-specific limit demonstrated to protect the intelligent-function requirement.
• Change trigger: the hardware, mechanical, calibration, firmware or model changes that invalidate the established correlation and require renewed validation.

This boundary also keeps responsibilities honest. The OEM's AI or system team owns model sensitivity and application-level acceptance. Product-industrialization teams own the problem of making those requirements measurable and controllable at scale. Indic's published capabilities in Design for Test, New Product Introduction, and in-house test solutioning, automation and serial-level test-data access are adjacent production-engineering capabilities that can support this translation. They are not evidence that Indic developed or validated the customer's AI model.

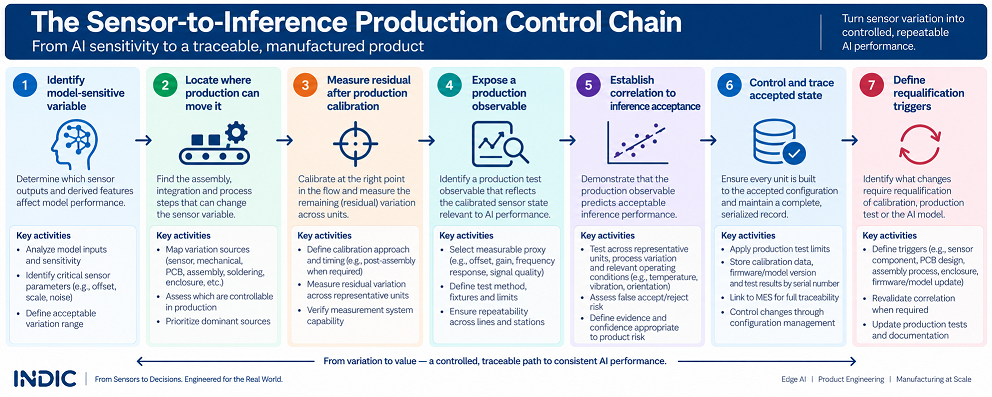

A Sensor-to-Inference Production Control Chain

The disciplines involved here are established: sensor characterization, calibration, validation, DFT, functional test, traceability and engineering change control. The useful step is to connect them into one decision path. The following Sensor-to-Inference Production Control Chain is an Indic engineering synthesis, not an industry standard or a claim of proprietary methodology.

The control chain changes the manufacturing question from “does the sensor work?” to “does this serialized product produce measurement behavior that remains inside the envelope the intelligent function was validated against?”

Calibration is one production control, not the whole strategy

Calibration is often the first response to unit-to-unit sensor variation, but it is only appropriate when the error can be measured and corrected with a stable model. Offset and scale errors may be good candidates. Geometric misalignment, acoustic or optical path changes, nonlinear effects, temperature dependence or unstable mechanical coupling may require different controls.

Timing also matters. Bosch's accelerometer guidance recommends calibration after assembly because soldering and PCB bending can move offset. ST's VL53L4CD manufacturing flow likewise places offset—and, when cover glass is used, crosstalk—calibration in the customer manufacturing process. These examples support a narrower design rule: where calibration is intended to compensate variation introduced by an assembly or integration step, it generally needs to occur after that step—or the calibration architecture must explicitly account for the later change.

The next question is residual error. A calibration routine returning “success” is not the product requirement. The team needs to know how much variation remains after calibration, whether that residual is stable across relevant conditions, and whether the model was validated across that residual distribution.

Composite engineering scenario: a MEMS motion classifier that passes basic test

Production test does not always need to rerun the full AI validation suite

A common mistake is to assume that if AI behavior matters, every manufactured unit must execute a complete application-level inference validation. That may be justified for some products, especially where regulation, safety or the application requirement demands it. It is not automatically the most scalable test architecture.

A more useful question is whether product development can establish a production observable that correlates strongly enough with the AI-sensitive behavior. If a controlled fixture stimulus, calibration residual or intermediate feature can demonstrate that the sensing path remains inside the validated envelope, production may be able to use that observable as the unit-level acceptance test while the full AI validation remains part of design/DVT correlation. That substitution is defensible only when the relationship has been demonstrated across representative hardware/process variation and relevant operating conditions, the stimulus and fixture are repeatable enough for the intended acceptance envelope, and the false-accept/false-reject consequences of the production limit are understood.

The correlation must be demonstrated, not assumed. A convenient proxy that does not predict inference acceptance is simply a cheaper test of the wrong thing. The production test method therefore needs its own measurement-system evidence—fixture/stimulus stability, station-to-station control where multiple stations are used, and change control for test software and limits—at a capability level appropriate to the product-specific acceptance envelope.

The correlation study should also be designed around the failure modes that could invalidate it. That may require stratifying units by lot or assembly condition, repeating measurements, and exercising combinations of temperature, vibration, orientation or other operating factors when those factors can interact with the sensor path. Sample size and statistical confidence should be justified from the expected variation and the consequence of a false accept or false reject—not copied from a universal rule or demonstrated only at room temperature.

Designing access to these observables is partly a DFT problem. Indic's Design for Test capability describes adding test access and diagnostic features during design rather than treating testability as an afterthought. Its NPI scope includes process development and assembly tools/fixture design; its published functional-test and end-of-line test pages cover controlled-input/output verification; and its Technical Expertise page describes in-house test solutioning, automated production testing and MES-linked serial test data. In an Edge AI product, the OEM must still supply the AI-sensitive requirement and prove the correlation; the production-side task is to make that requirement testable at scale.

Traceability has to include the intelligent-product configuration

Sensor-to-inference conformance can depend on more than the PCB serial number. If calibration, preprocessing or the model changes the representation used for acceptance, the serialized product state may need to include those identities as well.

Not every product requires every element above, and the exact genealogy is application-specific. The principle is that the evidence required to reproduce an acceptance decision should be retained when that evidence materially affects intelligent-function behavior.

This is where conventional manufacturing traceability becomes valuable to Edge AI productization. Indic's published Production Test & Traceability in EMS article describes versioned test recipes, firmware identity and serial-linked test results. The Edge AI-specific extension is to determine whether calibration identity, preprocessing state or model/runtime version also belongs in that product record.

This proposition is deliberately stronger than “keep good records.” If two units fail differently, engineers need to distinguish a physical sensor population issue from a calibration, firmware, model or test-recipe difference. Without configuration genealogy, those failure domains become unnecessarily entangled.

Sensor substitution and mechanical change become requalification questions

A replacement sensor can be electrically and mechanically compatible yet change noise, offset distribution, filtering, timing or temperature behavior. A housing revision can change alignment or mechanical coupling. A calibration update can change the residual distribution. Firmware preprocessing can change the representation without changing the sensor at all.

The requalification burden should therefore follow the sensor-to-inference path rather than procurement labels alone:

1. Compare raw sensor behavior under representative stimuli.
2. Compare the post-calibration and post-preprocessing representation.
3. Check the model-relevant feature or production observable.
4. Run targeted inference validation if that representation moved materially.
5. Escalate to broader revalidation when the sensing architecture, model interface or intelligent-function behavior changed substantially.

Indic's Product Lifecycle Management capability includes engineering change management. For an intelligent product, the OEM's AI/system team needs to define which changes affect the validated inference envelope so that lifecycle change control can trigger the appropriate technical evidence rather than treating every substitution as either harmless or a full redesign.

Environmental variation deserves its own validation program and is intentionally not expanded here. Temperature, vibration and humidity can interact with sensor behavior and will be addressed separately in this series; Indic's existing Environmental Stress and Screening capability is adjacent manufacturing/reliability infrastructure, not a substitute for application-specific AI validation.

What should be frozen before PVT?

Before production validation or ramp, the OEM team should be able to answer seven questions:

1. Which sensor or derived features materially affect the intelligent-function requirement?
2. Which production and assembly variables can move those features?
3. What does calibration correct, at what assembly stage, and what residual remains?
4. What controlled stimulus and observable can production reproduce?
5. What evidence—across representative units/lots, relevant operating or environmental corners, and a level of statistical confidence appropriate to the product risk—shows that the production observable predicts acceptable inference behavior?
6. Which hardware, calibration, firmware, preprocessing and model identities must be traceable?
7. Which changes invalidate the established correlation and trigger requalification?

If those answers are explicit, sensor variation has become an engineered production parameter. If they are not, the line may be very good at proving electrical functionality while remaining blind to the measurement behavior the AI depends on.

Closing perspective: manufacture the validated measurement envelope

The objective is not to make every sensor output identical. That is neither realistic nor necessary. The objective is to understand which residual differences matter to the intelligent function and then keep the shipped population inside the envelope that was actually validated.

That requires coordination across disciplines. AI and system engineering identify model sensitivity. Product engineering determines how assembly, calibration and configuration can move the relevant variables. NPI and DFT make the requirement accessible to fixtures and test. Production test generates acceptance evidence. Traceability preserves the accepted configuration. Change management protects the correlation after release.

Seen this way, sensor variation is not merely a sensor-specification issue. It is a product-industrialization problem with an AI consequence. That is the bridge OEM teams need to engineer before the product reaches scale.

Selected engineering references

1. Bosch Sensortec — BMA400 accelerometer design guide.
2. STMicroelectronics — UM2931, VL53L4CD Ultra Lite Driver user manual and production calibration guidance.

This article provides engineering decision guidance, not product-specific acceptance limits or a certification standard. Validation depth, production limits and requalification scope must be established for the intended application, sensing architecture, operating environment and applicable regulatory requirements.
